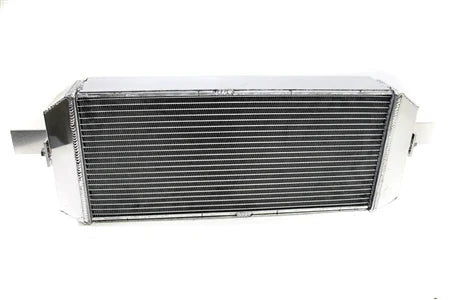

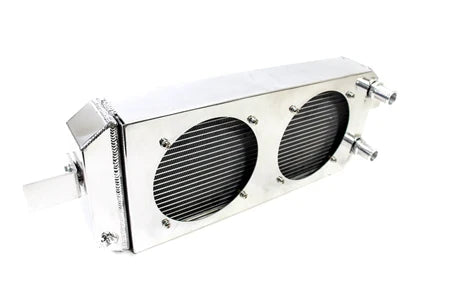

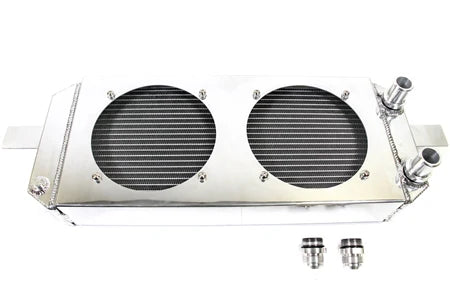

PLM Power Driven Tucked Radiator

The PLM Power Driven Tucked Radiator is designed to sit low and tight, freeing up room for big turbos, custom intercoolers, and aggressive engine swaps. With removable brackets and dual fitting options (AN or OEM hose), it’s the ultimate mix of form and function, especially for swaps or turbo builds.

Key Features:

• CNC’d aluminum construction with clean welds

• Threaded inlet/outlet for AN fittings or OEM-style slip-on hose ends

• Removable mounting brackets (non-welded) for universal install options

• Dual 16AN & slip-on fittings included

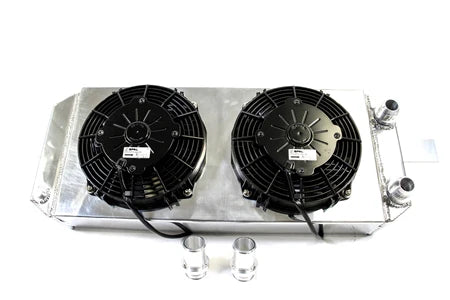

• Optional: dual fan setup for serious cooling

Specs:

• Core size: 24” x 9.5” x 3.5” (no fans) / 5.5” (with fans)

• Overall width with brackets: 30”

• 1/4" NPT drain plug

Compatibility:

• Commonly used in:

  • Civic EG/EK/EF

  • Integra DC2/DA

  • K-swapped chassis

  • Universal applications (check dimensions)

Whether you're tucking for turbo clearance or going for a show-worthy engine bay, this radiator gets it done, with style.

Used in the Picklepepper Garage AWD K24 Turbo EF build.
